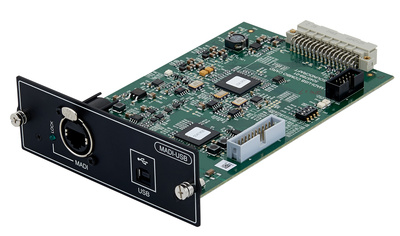

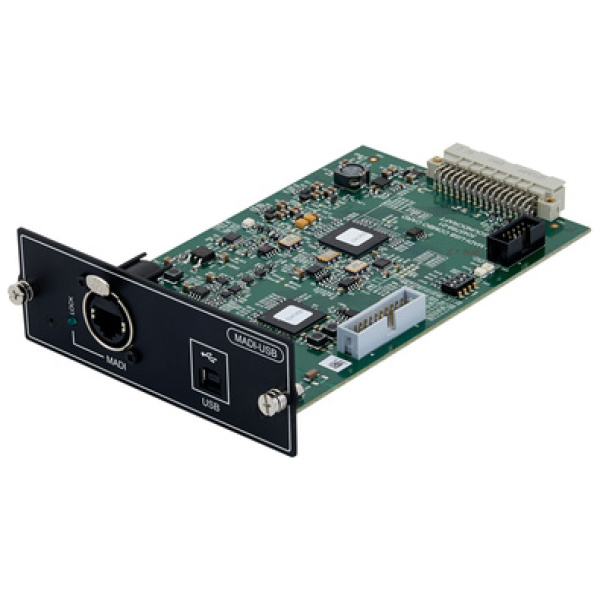

Soundcraft MADI-USB Combo Card

Description

The Soundcraft MADI-USB Combo Card integrates seamlessly into audio production environments, providing versatile connectivity options. It features one MADI RJ45 port, suitable for connecting to Soundcraft stageboxes via CAT cabling, and one USB port designed as a DAW connector for recording purposes. The standard configuration allows for MADI 32 inputs and 32 outputs, as well as USB 32 inputs and 32 outputs. Additionally, the card offers optional settings via a DIP switch, enabling configurations such as MADI 64 inputs and 32 outputs or USB 0 inputs and 32 outputs. It is compatible with PC and MAC systems, specifically Mac OS X from version 10.7. For optimal performance, users are advised to update to the latest software.

Key benefits

• 1x MADI RJ45 port → Connects to Soundcraft stagebox via CAT cabling.
• 1x USB port → Facilitates DAW connection for recording audio.
• Standard configuration: MADI 32in / 32out → Supports high channel count audio applications.
• USB 32in / 32out → Enables extensive audio input and output for digital audio workstations.
• Optional DIP switch settings → Allows custom configurations to meet specific audio routing needs.
• Compatibility with PC & MAC → Ensures broad usability in various digital audio environments.

Use and audience

The Soundcraft MADI-USB Combo Card is suitable for audio professionals and studios requiring robust connectivity solutions. Its compatibility with both PC and MAC systems makes it versatile for diverse setups. The card supports high channel count configurations, making it ideal for live sound and studio recordings. Users will benefit from its adaptability in various audio production environments, ensuring efficient data transfer and recording capabilities.

Details and features

• 1x MADI RJ45 port → Designed for connecting to Soundcraft stageboxes.
• 1x USB port → Functions as a DAW connector for audio recording.
• Standard configuration: MADI 32in / 32out → Provides a reliable 32-channel audio interface.
• USB 32in / 32out → Delivers comprehensive digital audio input and output.
• Optional settings via DIP switch → Offers flexibility in configuring audio channels.
• Compatible with Mac OS X from version 10.7 → Supports a wide range of operating systems.

In practice

The installation of the Soundcraft MADI-USB Combo Card is straightforward, allowing for quick integration into existing audio setups. Regular software updates are necessary to maintain functionality and performance.
